| Name | 7inch Screen Access Controller Scenic Display Mainboard Turnstile Control Board turnstile, business building, Gym club entering |
| Model | PWB03 |

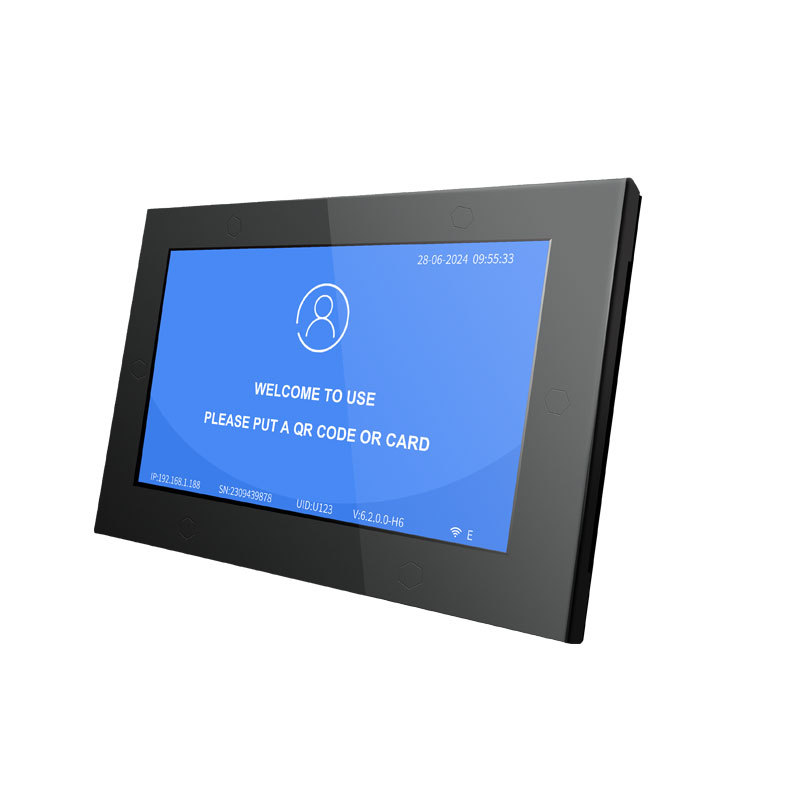

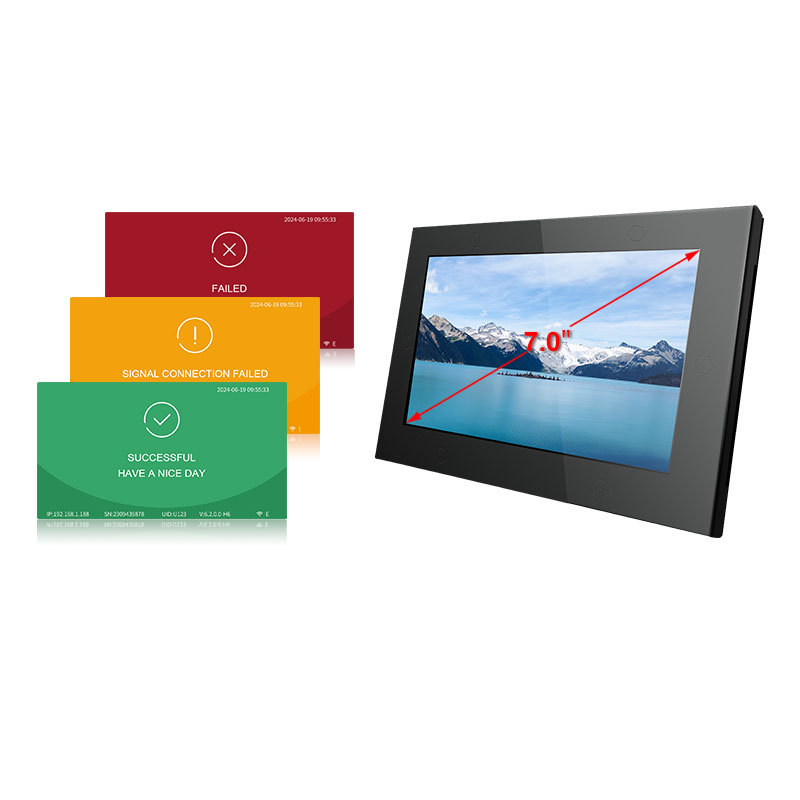

| Display screen | IPS 7 inch，1024*600， switched freely between landscape and vertical screen rotation; |

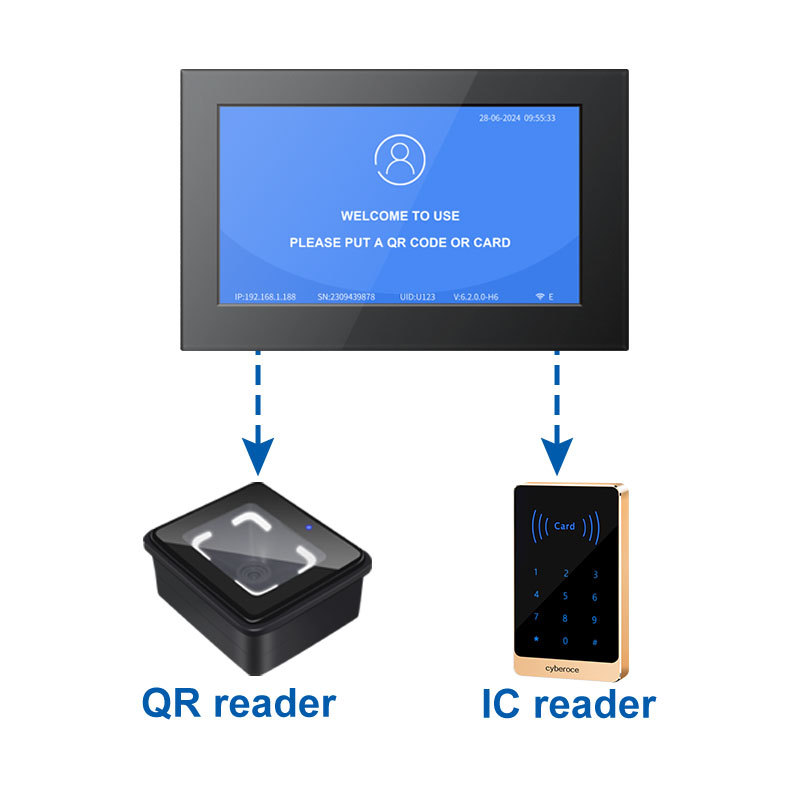

| Verification methods | Connect the external readers, such as QR code reader, RFID reader |
| Output | Replay signal |
| Chipset | XBurst® 1.0GHz |
| Operation system | Embedded Linux 4.4 |
| Storage capacity | White list 100000，records 200000 |
| Storage memory | 128M Flash |
| Input | Two RS232； |
| One RS485； | |
| One wiegand input | |
| Two relay output | |
| Two Optocoupler input | |
| One USB； | |

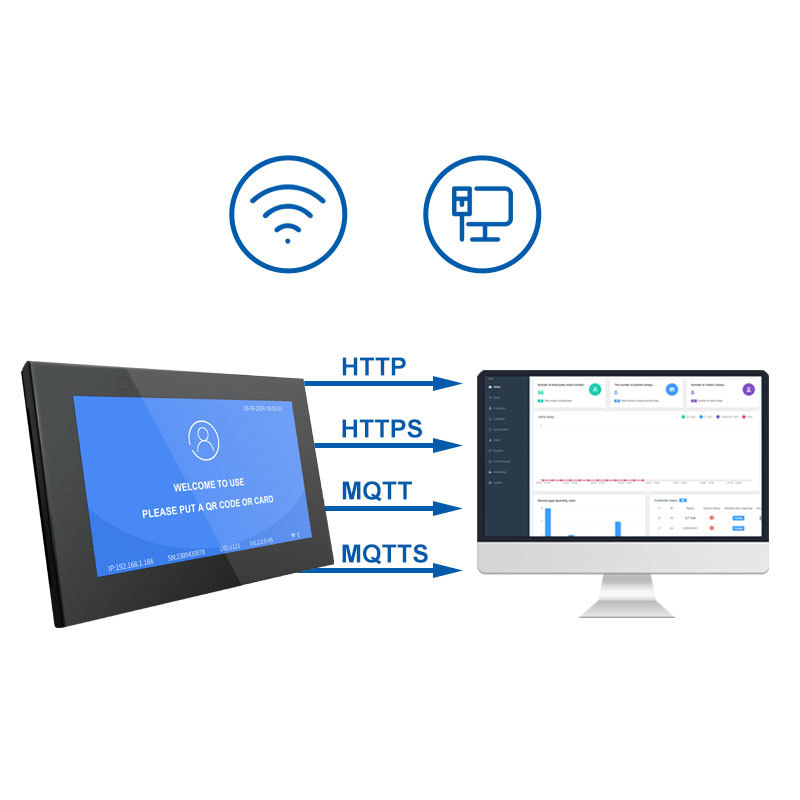

| WIFI(optional) | 2.4G，802.11b/g/n |
| 4G(optional) | Cat1，4G all netwrok (No 5G)，Nano SIM card |

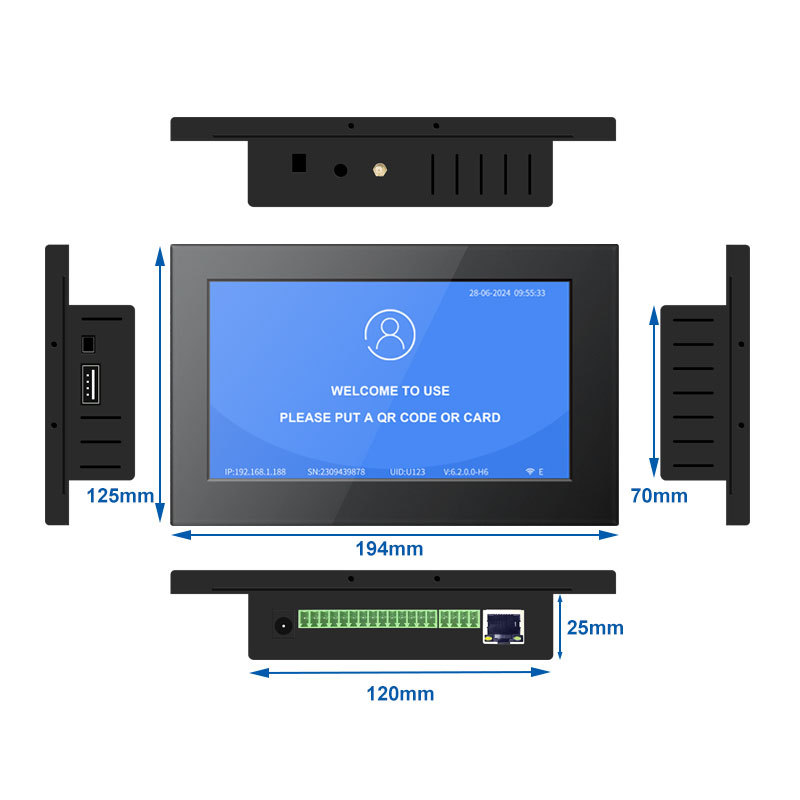

| Size | 181*100mm |
| Weight | About 350g |
| Working voltage | DC 9V~25V |
| Working current | 1.5A(12V power supply )(connect with speaker, but no input device) |
| Standby current | 350mA(12V power supply) |
| Audio | 4Ω10W |
| Relay loading | 1A |
| Waterproof | No |
| Static electricity level | Air discharge ±6KV |
| Working temperature | -20°C-60°C |
| Storage temperature | -40°C-80°C |
| Humidity | 95%，Non condensing |
