| Basic | Name | 86size QR Code Access Control RFID TCP Multi-Func Smart Reader and access Control | |
| Model | CR06E | CR06EU | |
| Networking method | Ethernet | Ethernet | |
| Identification method | QR code/IC card/EM card/Password keyboard | QR code/IC card/EM card | |
| WIFI (2.4G) | Optional | Optional | |
| Bluetooth (4.0 BLE) | Optional | Optional | |
| Output method | Relay signal | ||
| Master chip | x1021（XBurst® 800MHz） | ||
| Operating system | Embedded Linux | ||
| Storage | Number of whitelist (100,000 QR codes, 100,000 IC cards), 100,000 offline records | ||
| Storage memory | 128M Flash | ||

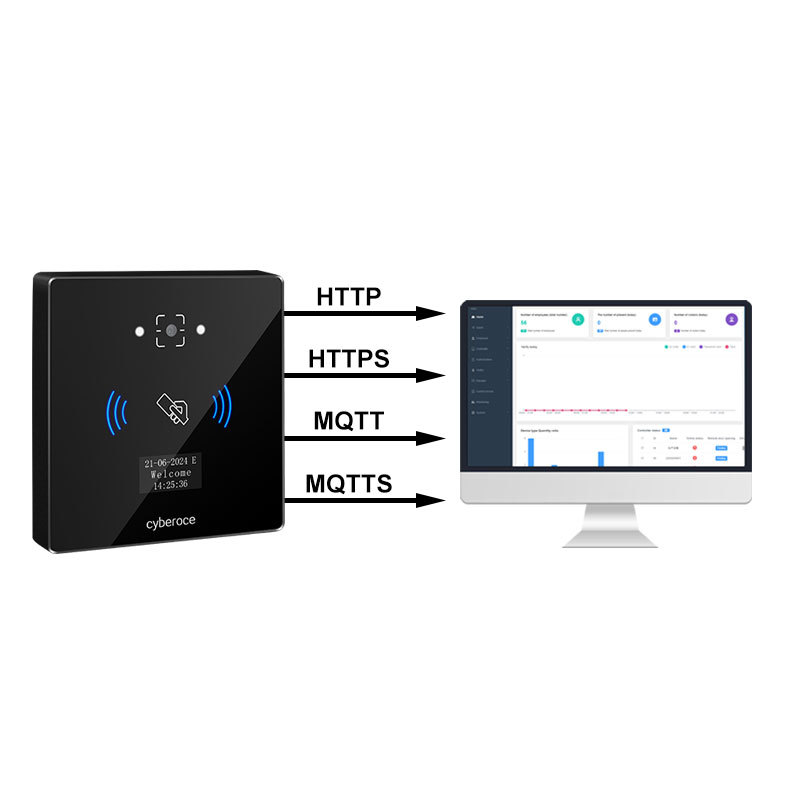

| Protocol | http,https,MQTT, MQTTS | ||

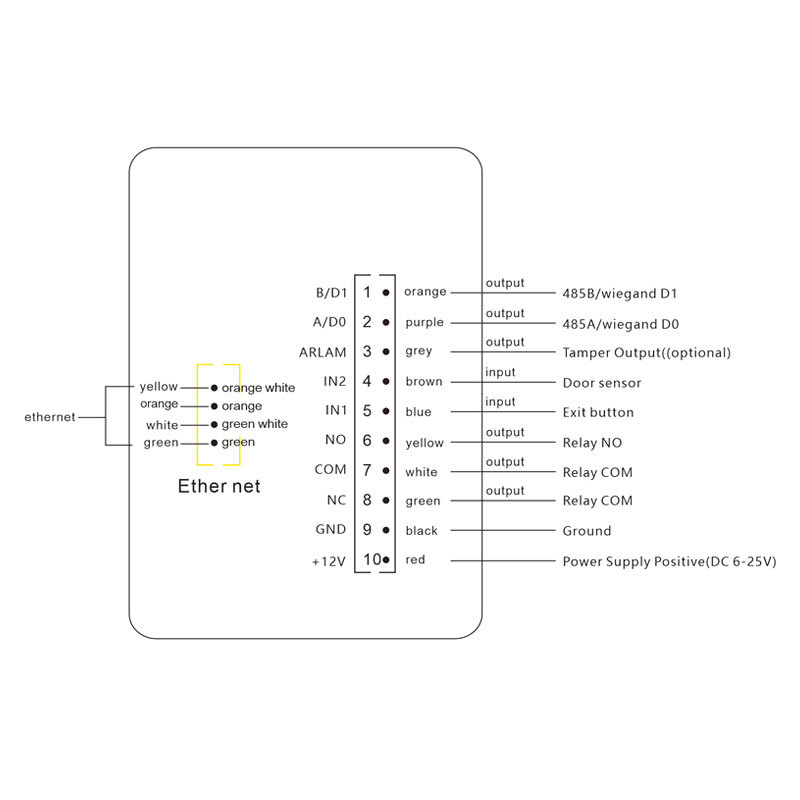

| Input Output | Two inputs (for connecting the exit button and door sensors); | ||
| One infrared anti-tamper alarm sensor output; | |||
| One relay output (can be used to control electric locks, turnstile, etc.) | |||
| Anti-tamper alarm (optional) | Support local alarm and signal output, which can be transmitted to the background server in real time | ||
| Extended communication interface | Wiegand output or RS485 output (Only one must be choosed, default Wiegand output) | ||

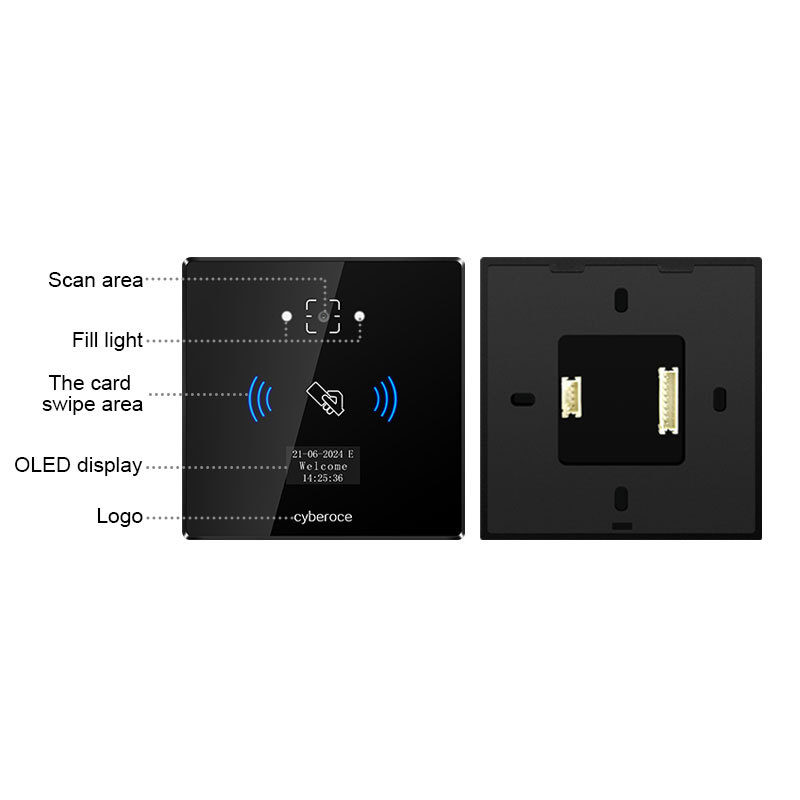

| Display | OLED 0.96-inch display | ||

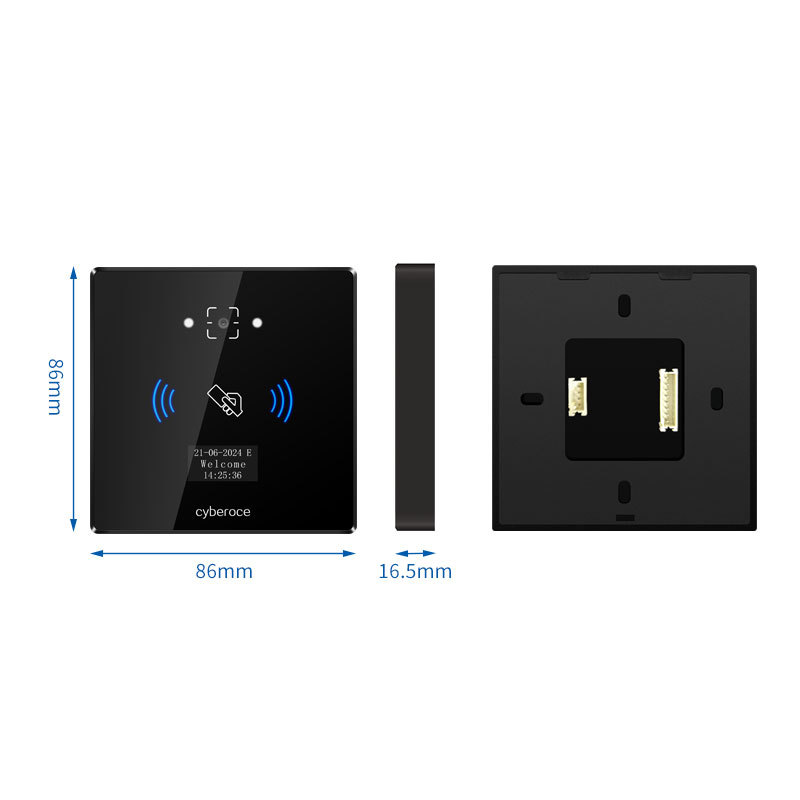

| Physical dimension | 86*86*16.5mm | ||
| Material | ABS+tempered glass | ||
| Weight | 200g | ||
| QR Code | Reading QR code types | QR Code, etc. | |
| Reading 1D code types | C128,C39 ,etc. | ||
| Reading accuracy | ≥7mil | ||
| Recognition speed | <200ms | ||
| Reading angle | Angle of rotation 360°，angle of elevation ± 55°, Angle of declination ± 55° | ||
| Scan angle | 72°（level）, 54°（vertical）, 84°（Diagonal） | ||
| Recognition distance | 5-20cm | ||
| QR code support range | 1024 characters | ||
Proximity Card |
Supported card reading types | Support ISO1443A/ISO1443B Card Type | |
| Working frequency | 13.56MHz | ||
| Card type | Support IC card reading sector,CPU card reading files (optional) | ||
| Card reading distance | IC card: less than 5CM | ||
| EM card (optional) | Support 125K EM card | ||
Electric |
Operating Voltage | DC 6V~25V | |
| Working current | 180mA(12V power supply) | ||
| stand-by current | 120mA(12V power supply) | ||
| Relay load capacity | 1A | ||

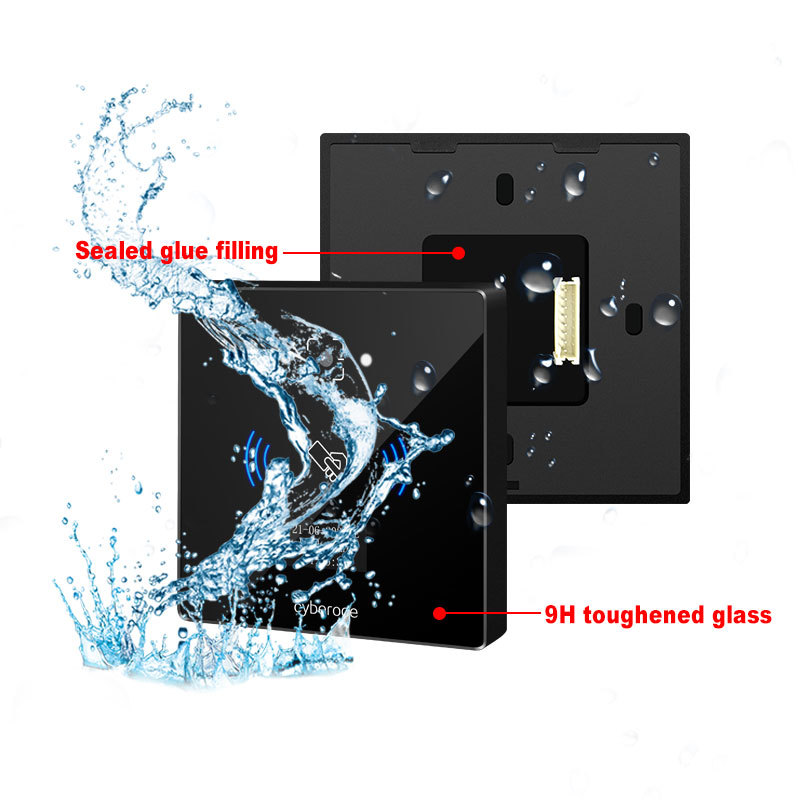

| Enviomment | Waterproof level | IPX7 | |
| Static electricity level | Air discharge ±12KV, contact discharge ±6KV (power supply needs to be effectively grounded) | ||
| Operating temperature | -20°C to 60°C | ||
| Storage temperature | -40°C to 80°C | ||
| Relative humidity | 95%（Does not condense） | ||
| Ambient lighting | Sunlight at noon, low light source at night | ||
